6-8
Average Panels
Installed Per Day
DAYS LOST FROM
ON-SITE WEATHER
DELAYS
0
SF OF PANELS INSTALLED PER DAY *Assuming 12' x 30' panel sizes2,100-2,900
WORKERS Average manpower of prefab panels
compared to conventional methods6 vs. 30
Panels are loaded on trailers and shipped to the jobsite for ‘just in time’ delivery. Panels are set in-place and installed by the BakerTriangle team.
CFMF shop drawings are incorporated, fabrication tickets are created, trailer load schedules are built, and in-house fabrication occurs prior to shipment and panel installation.
Once reviewed, panel breaks can be created and deeper detail is analyzed to vet proper support, dimensions, and details. This is typically done at the DD phase.
Early Collaboration: early involvement starts with a feasibility review of the project. We will take the provided model and assess the project for prefabrication opportunities. This is most efficient when done at the SD or DD phase of documents.
Conception to Completion Roadmap
Installation
Panel Creation
Early Review
Early Involvement
2
3
4
1
2
3
4
Stages of Panel Production
Our streamlined process allows you to take full control over your project from assembly to install.
WATCH VIDEO
01

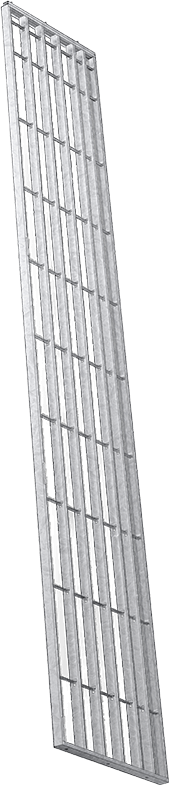

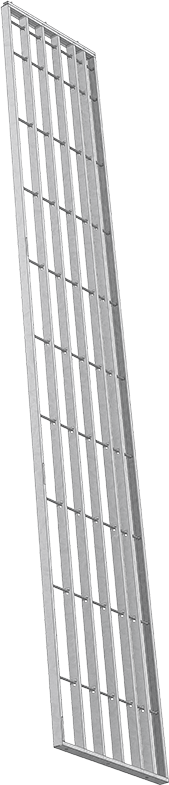

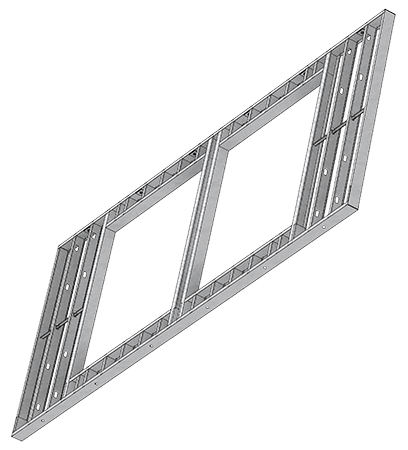

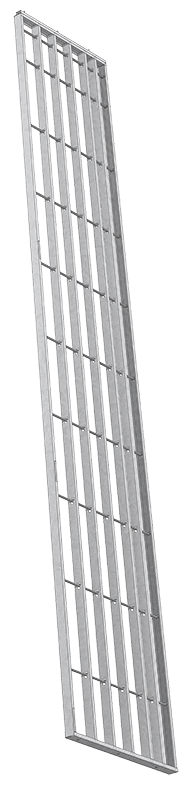

Stud Framing
WATCH VIDEO
02

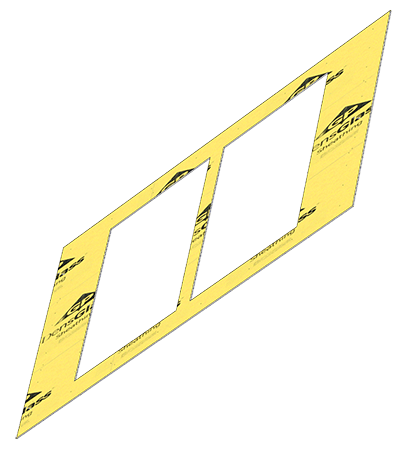

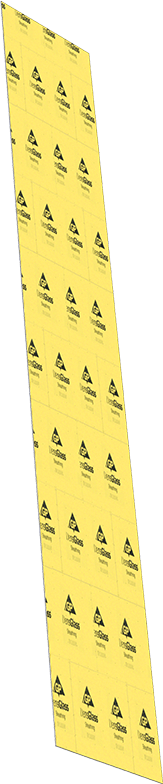

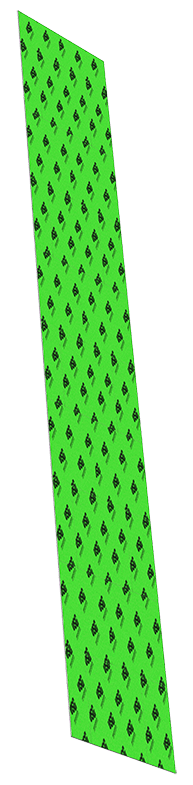

Sheathing
WATCH VIDEO
03

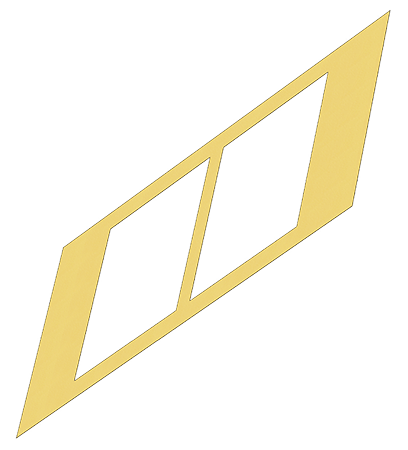

Air Weather Barrier
WATCH VIDEO
04

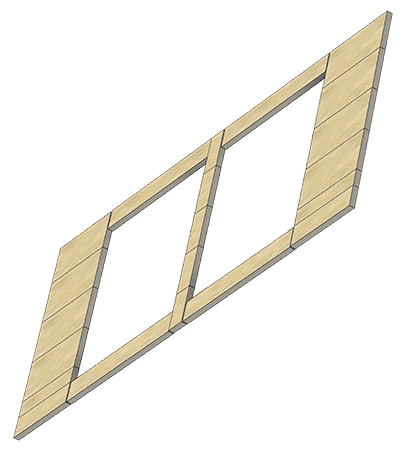

Continuous Insulation
WATCH VIDEO
05

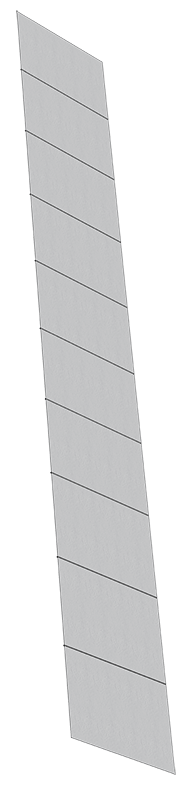

Exterior Finishes
WATCH VIDEO
06
Glazing
WATCH VIDEO
07
Loading & Shipping
WATCH VIDEO
08
Install
Download Data Sheet

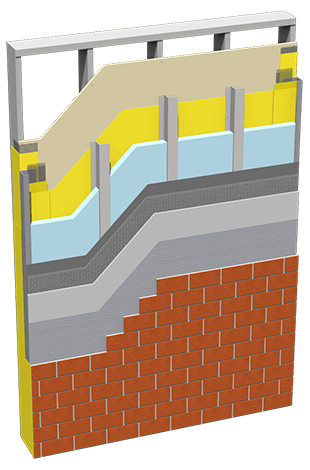

StoPanel Brick ci is a lightweight, energy efficient pre-fabricated exterior wall panel with a continuous air & moisture barrier, exterior insulation as an option and a variety of thin veneers, such as thin brick; all at a fraction of the weight of conventional thick brick/or other thick veneers.
Download Data Sheet

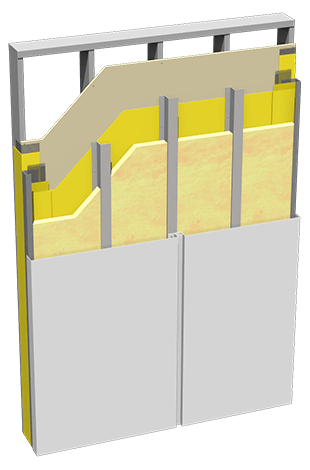

Metal panel construction at a lower cost, with StoGuard waterproof air barrier and exterior insulation standard.
Download Data Sheet

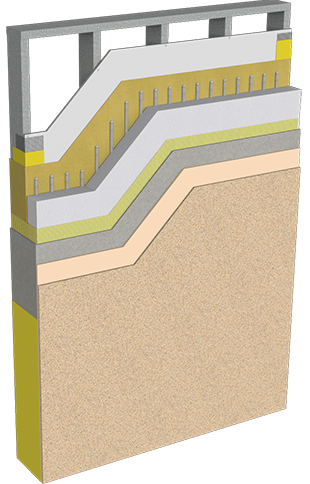

This lightweight prefabricated panel is both energy efficient and durable, with continuous insulation and StoGuard waterproof air barrier standard. Versatile Sto Finishes allow for almost any design aesthetic.
Download Data Sheet

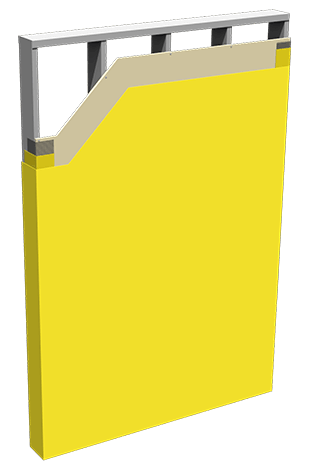

StoPanel Backup is the starting point for all StoPanel cladding options. Consisting of cold formed steel, glass-mat faced gypsum sheathing and StoGuard air & moisture barrier; StoPanel Backup is the backbone of StoPanel Technology.
